A Smith Chart module has been developed for use
with the DESIGN Interactor. The module is an ActiveX application which runs
under control of a FilmStar BASIC macro specified in the Interactor.
Click here to access the installer for this module.
This installs c:\Winfilm\SmithChart.exe, graphics
engine c:\Windows\System32\pepso32d.ocx, and DESIGN macro
c:\Winfilm\Basic32\SmithChart.bas (assuming default FilmStar directories).

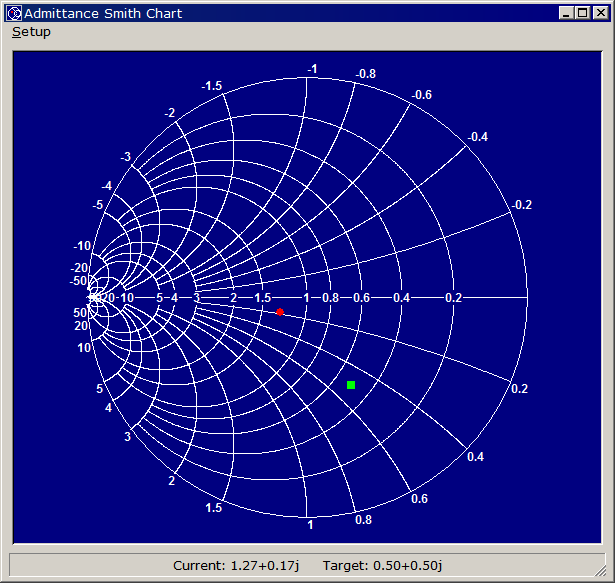

| The red dot
represents current value while the green square indicates target value.
The Interactor screen image at the right (Options dialog) shows how to attach the
Smith Chart module to the Interactor. Click the browse square (gray with
3 dots) and locate SmithChart.bas in C:\Winfilm\Basic32 (assuming default directories).
The Smith Chart screen should activate automatically when you click an
Interactor button.
This module illustrates how FilmStar users can add
specialized graphics capabilities. A high resolution monitor is
recommended so that the DESIGN and Smith Chart windows can be viewed
simultaneously. Change Automation...Select to Disable when the module is
not required. |
 |
