Technical Issues - Reliability of Inverse-Synthesis
This work was presented at the 2008 SPIE Optical System Design conference in Glasgow and can be downloaded or viewed as follows: printed paper, PowerPoint slides, PowerPoint slides in PDF format (for those who cannot read PowerPoint files).
Coatings are subject to random, systematic, and gross (operator or machine) errors. In the case of random errors, inverse-synthesis by least-squares fitting provides means to determine which layers had thickness errors. The process is much the same as thin film design, except that here the targets are measured data. But, unlike coating design, where many acceptable solutions are possible, inverse-synthesis requires a unique and correct solution.
We calculate the reliability of inverse-synthesis by the following general method:

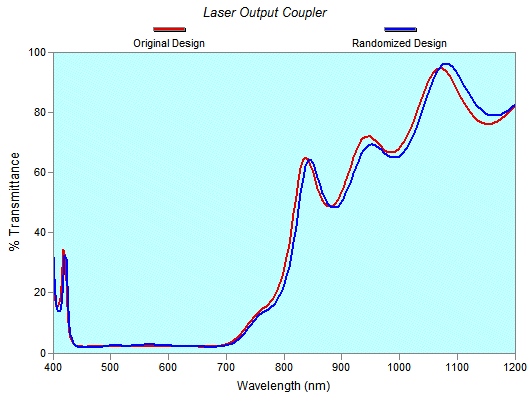

Using FilmStar BASIC, the above sequence is automatically repeated until the statistics become clear, say 50 iterations. The example below shows an iteration of a 26 layer laser output coupler (T=2% from 450-650 nm) with StdDev = 2% random errors.

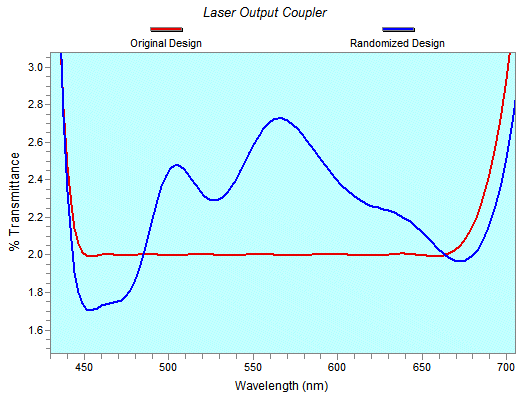

The same graph zoomed clarifies the deleterious effects of Std Dev = 2% random errors in the range of coating performance.
The blue trace (simulating a coating measured at normal incidence from 400 to 1200 nm) is converted to optimization targets and the original (red trace) design restored. Using DLS we solve for the blue spectrum and compare the solution to known layer values. In the case of visible coatings, it seems reasonable to extend measurements to the long wavelength side rather than the short side where dispersion effects will be more pronounced.
The graph below shows results. The blue curve represents the known solution while the red (Invalid Solution, 0°) and green (Valid Solution) curves were calculated by DLS. In the graph below, curves are superimposed and cannot be separated. Most importantly, the graph shows no differences between valid and invalid solutions.

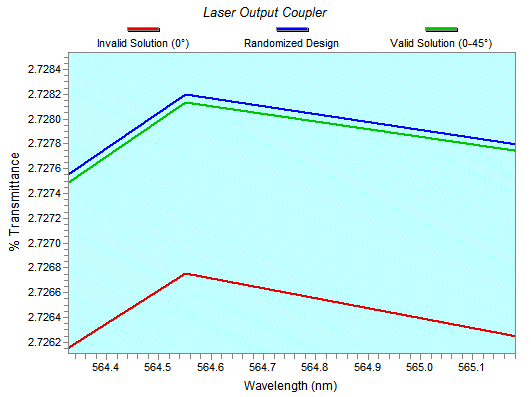

Zooming the graph, we eventually see differences, but notice the %T scale!
Using the range 400-1200 nm and an accuracy criterion of 0.5% we determined that reliability is essentially zero. Adding spectra (targets) at 45° (P & S polarization) increased the reliability to 100%. Our results strongly suggests that coating facilities may achieve dramatic benefits from upgrading their measurement technology well beyond the minimum required for pass/fail analysis. Using the actual performance range 450-650 nm, reliability at either 0° or 0-45° is zero.
Reliability depends on the type of design, number of layers, magnitude of errors, measurement range, angle, and accuracy criterion. Repeating the analysis for a four layer 450-750 nm AR coating with layer StdDev = 5% gave 100% reliability (0.5% accuracy) for calculations over the range 450-750 (0°). When StdDev = 20% (simulating large errors), reliability becomes 56% (0°); expanding the range to 400-1200 nm gives 76% (0°) and 92% (0-45°).
Experienced coating engineers are familiar with these ideas. What is new here is the general method for estimating reliability. While 100% theoretical reliability does not guarantee 100% in practice, failure of the theoretical simulation guarantees failure with measured data.
Suggestions for further work include:
BASIC code (0-45° case) is given below:
Option Explicit DefInt i-N DefSng A-H, O-Z Option Base 1 Public Const Iter = 50 ' change as required
Sub Main Dim i, k, IterNG, nLayers, Design0$, qDesign(), qDesc$() Dim qSolve(), qType$(), TestPC, bOK As Boolean TestPC = Val(InputBox("Enter Verification Level in %", _ "Reverse Synthesis Test", "0.5")) If TestPC > 0 Then MainEvents = True ' enables Abort menu command Design0 = Design Angle = 0 For i = 1 To Iter AxesDraw StatusLabel CStr(i) & "/" & CStr(Iter) Design = Design0 ' original design CalcRand 0, 1 ' randomize layers, retaining design GetLayers nLayers, qDesign(), qType$(), qDesc() FileSave "temp.dx" ' save to replot later SpecTargets True, "R", 1, 0, "R" Angle = 45 Pol = "P" Calculate SpecTargets False, "R", 1, 45, "P" ' convert to targets Pol = "S" Calculate SpecTargets False, "R", 1, 45, "S" Design = Design0 ' restore original design Optimize ' solve GetLayers nLayers, qSolve(), qType$(), qDesc() bOK = True For k = 1 To nLayers ' all layers in spec?? If Abs(qSolve(k) - qDesign(k))/qDesign(k) > TestPC/100 Then IterNG = IterNG + 1 ' fails bOK = False Exit For End If Next k AxesDraw LineColor "B" FileOpen "temp.dx" Replot ' replot original randomized design Wait 2 If bOK Then LineColor "G" Else LineColor "R" Angle = 0 CalcPlot ' calculate and plot solution at 0° Wait 3 Next i Design = Design0 MsgBox "Confidence Level = " & CStr(100*(Iter- IterNG)/Iter) _ & "%", vbInformation, "Inverse Synthesis 0-45°" End If LineColor "R" End Sub
